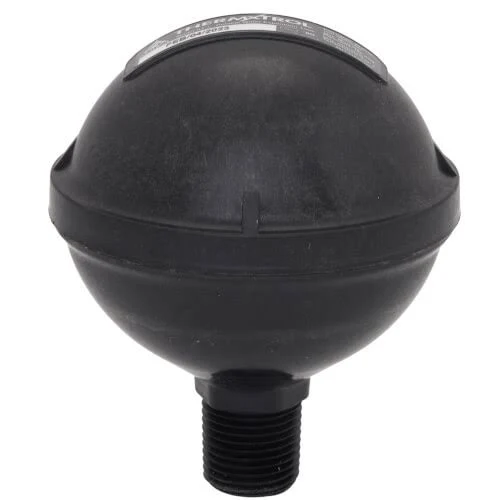

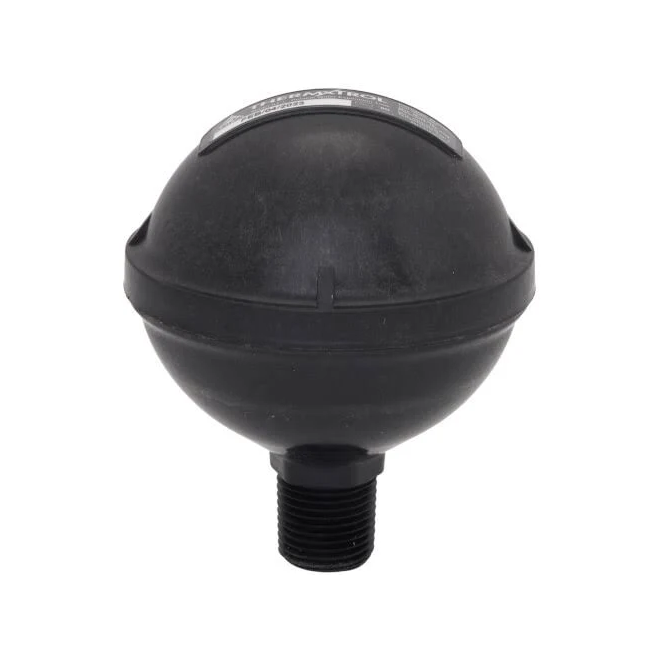

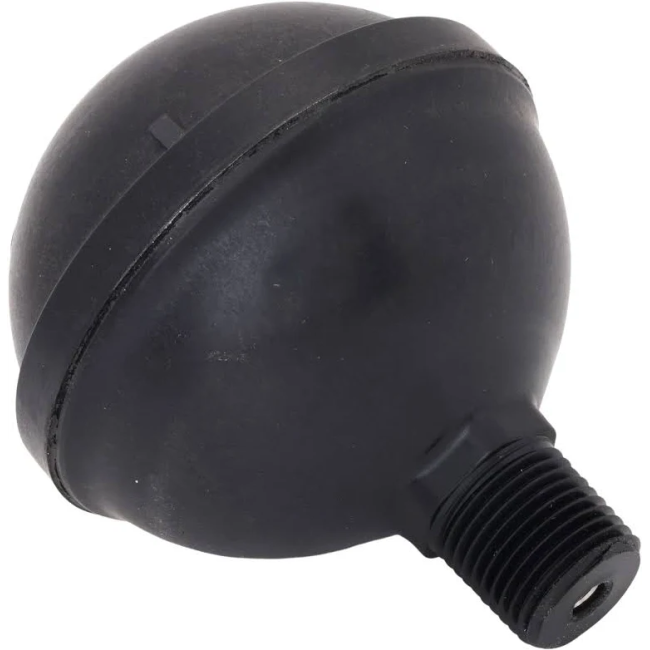

Amtrol Therm-X- Trol Expansion Tank ST-1
SKU: ST-1
Product Description
The ST-1 is engineered to absorb the thermal expansion and pressure surges that occur when water is heated in a closed plumbing system. By accepting this expanded water, it prevents dangerous pressure build-up, saves energy, and protects the sensitive heat exchangers in tankless units from premature failure. Its unique sealed air cell design eliminates the need for the manual air charging required by standard tanks
Technical Specifications
-
Part Number: 398917 (Model ST-1)
-
Connection Size: 1/2" NPTM (Male Pipe Thread)
-
Max Operating Temperature: 140°F
-
Max Working Pressure: 150 PSIG
-
Tank Volume: 0.7 Gallons
-
Materials: Steel shell with a 304 Stainless Steel waterway for corrosion resistance.
-
Dimensions: Approximately 4" Height x 3.4" Diameter.
-
Warranty: 7-Year Limited Warranty (Residential).
Key Features
-
Maintenance Free: The proprietary air cell never requires charging or pre-charge adjustment.
-
Potable Water Safe: Specifically designed for closed, potable hot water systems.
-
Superior Durability: Features a corrosion-resistant liner and a stainless steel system connection to withstand tough water conditions.
-
Compact Footprint: Ideal for installation in tight spaces near tankless water heaters where traditional 2-gallon tanks won't fit.
-
Energy Savings: Reduces water and energy waste by preventing the T&P relief valve from opening and discharging water unnecessarily.
