Franklin Water Treatment 48,000 Grain Whole House Water Softener (Clack WS1 Valve)
SKU: CLK048-8-RS
System Capacity: 48,000 Grains (1.5 cu. ft. Resin)

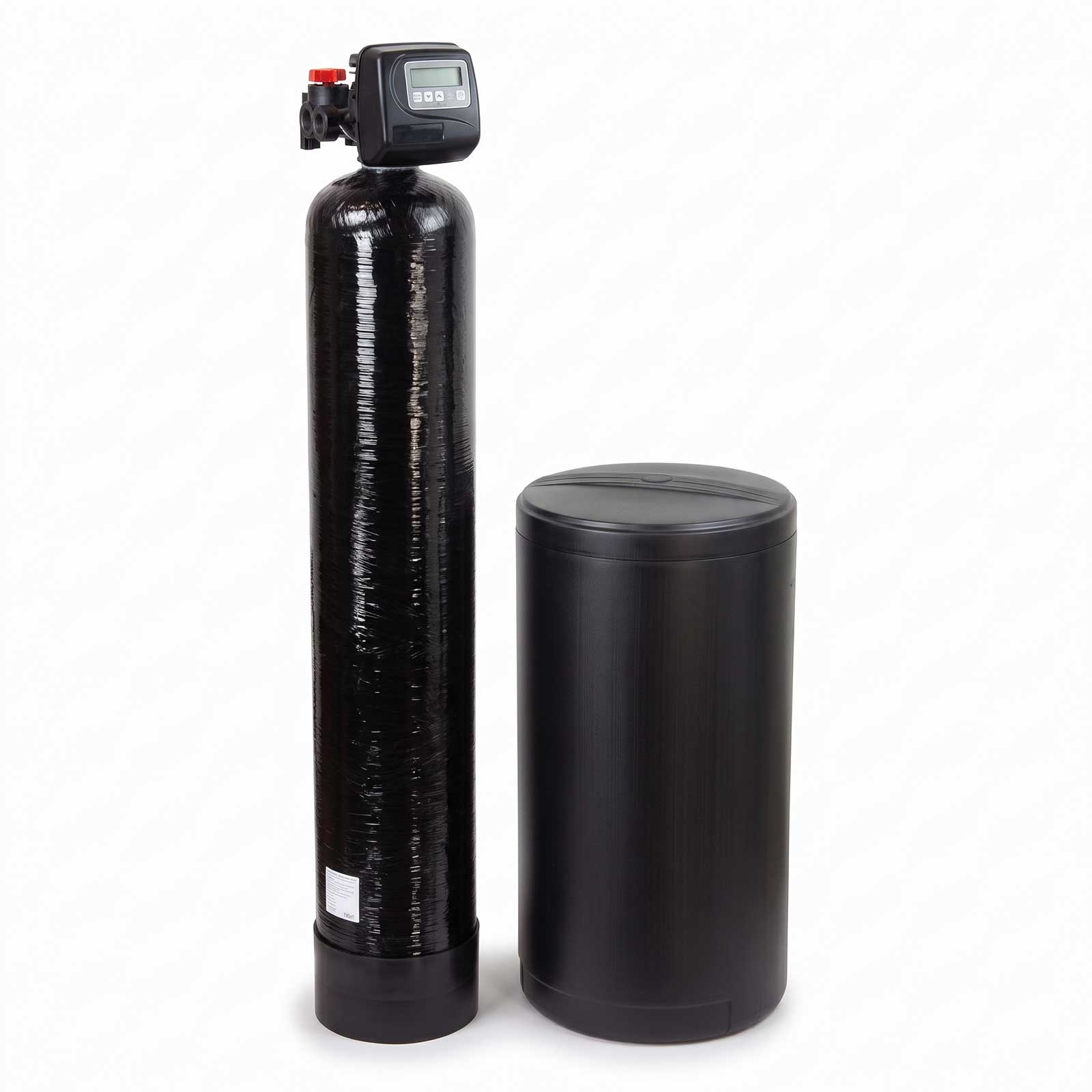

Configuration: Two-Tank System (10" × 54" Mineral Tank + Heavy-Duty Brine Tank)

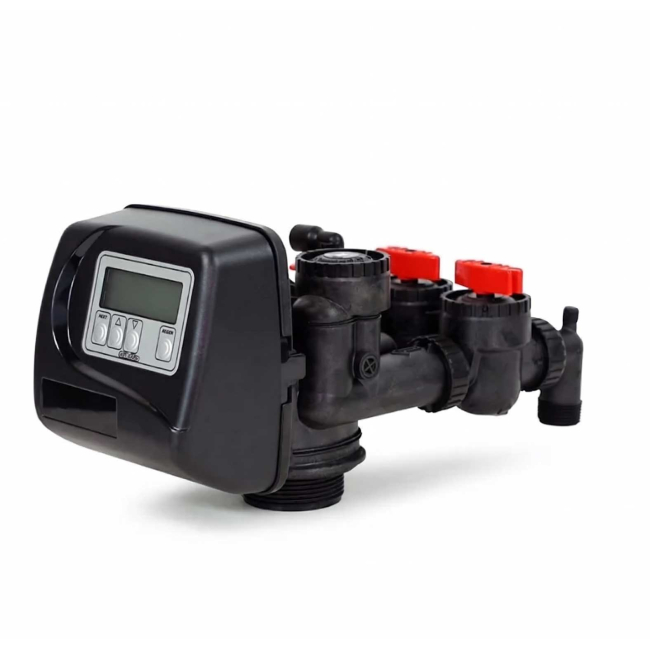

Control Valve: Genuine Clack WS1 Metered Demand Valve
Product Overview
Engineered for dependable, long-term residential hard water treatment, the Franklin Water Treatment CLK048-8-RS combines professional-grade durability with industry-leading efficiency. Powered by the proven Clack WS1 microprocessor control valve, this system tracks household water usage to regenerate on-demand—reducing unnecessary salt consumption and wastewater while ensuring a continuous supply of conditioned, scale-free water.
With a high-capacity 48,000-grain rating (1.5 cu. ft. of premium 8% cross-link resin), this unit easily supports households of 3 to 6 people experiencing moderate to severe municipal or well water hardness.
Key Features & Benefits
-
Industry-Standard Clack WS1 Valve: Non-proprietary, installer-favorite control valve known for exceptional reliability, modular design, and accessible replacement parts.
-
Smart Metered Regeneration: Built-in turbine meter monitors gallon-by-gallon usage and regenerates only when needed, optimizing salt and water efficiency compared to traditional timer-based systems.
-
48k Grain Capacity (1.5 Cu. Ft. Resin): Minimizes regeneration cycles, extending resin bed life and reducing mechanical wear.
-
Corrosion-Resistant Two-Tank Design: Isolates electronic valve components and fiberglass pressure vessels from caustic brine moisture, preventing board corrosion common in single-cabinet units.
-
Safety Brine Valve Assembly: Round brine tank includes an integrated safety float shut-off and overflow elbow to protect against tank flooding.
-
Non-Proprietary Architecture: No locked software or proprietary vendor components—readily serviceable by any certified plumber or water treatment professional.
Technical Specifications
What’s Included in the Box
-
Clack WS1 Metered Control Valve with Top Distributor Basket
-
Pre-loaded 10" × 54" Structural Polyglass Resin Tank (1.5 cu. ft. 8% Cation Resin)
-
Heavy-Duty Round Brine Tank with Safety Brine Well, Float Valve, and Salt Grid
-
1" Bypass Valve Assembly
-
110V Power Adapter
-
Manufacturer Installation & Programming Guide
Shipping & Freight Notice
This system ships via freight carrier to ensure safe arrival of all structural tanks and digital components. Liftgate service is available at checkout.
| Ship Method: | Truck Freight Delivery (Learn More)
Self-Service Truck Delivery: A freight carrier delivers this item. We call it “Self Service” because you’ll need to move the package off of the truck yourself. You may want a friend or family member on hand for help. Liftgate Services: Standard “Self-Service” Truck Delivery requires you to move your items off the truck without any help. For only $50, our delivery service partners can be contracted to perform “Liftgate Services”, and bring the item(s) to the ground for you. One “Liftgate Services” fee of $50 will include all the items in your cart. Delivery Notes: Once your order is near, a rep from the shipping company will call and give you a 4-hour window to arrange for delivery. Sometimes freight carriers offer their own services. Once we send you your tracking info, you can call the carrier directly to get more info. |
| Ships To: | USA 48 States |
| Ship Time: | Leaves our warehouse in 1-3 days |
| Estimated Delivery Time: | 3-10 days after leaving our warehouse |
We have no FAQs to display for this product now.
