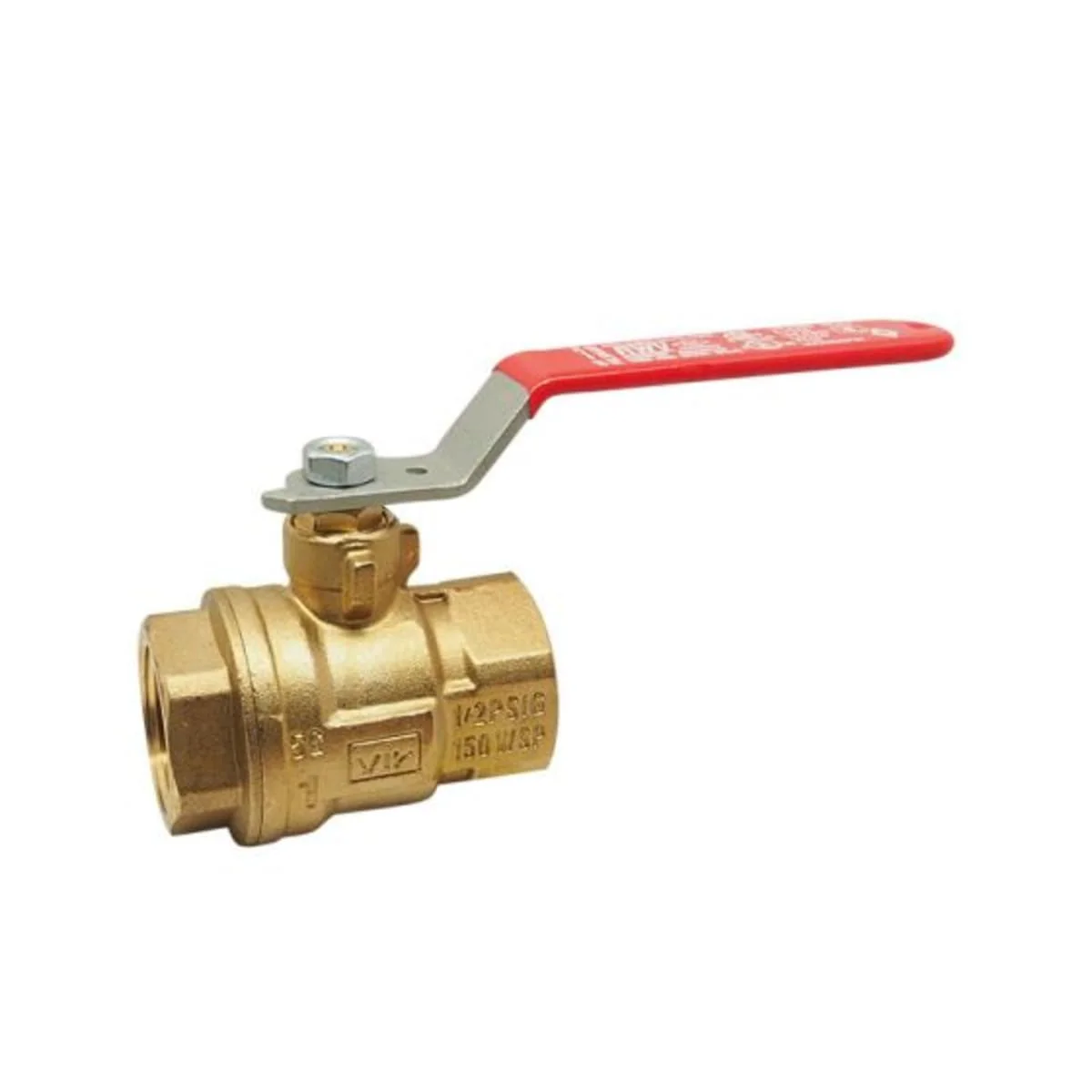

Item # 5044AB 3/4 Lead Free Brass Full Port Ball Valve
SKU: 5044AB 3/4
Product Description
The Red-White Valve 5044AB 3/4 is a professional-grade, two-piece ball valve designed for potable water, HVAC, gas, and vacuum systems. It features a full-port design that ensures maximum flow capacity and minimal pressure drop. Constructed from DZR lead-free brass, it is highly resistant to corrosion and meets strict lead-free certification requirements for drinking water.
- Nominal Size: 3/4 inch
- Connection Type: Female National Pipe Thread (FNPT x FNPT
- Pressure Rating: 600 PSI WOG (Water, Oil, Gas); 150 PSI WSP (Working Steam Pressure)
- Temperature Range: 15°F to 160°F (at
- Body Material: Forged DZR Lead-Free Brass600 PSI); Max 366°F (at 150 PSI)
- Port Type: Full Port (0.79 in orifice)
- Ball Material: Chrome-Plated Lead-Free Brass
- Seat & Packing Material: Virgin PTFE (Teflon)
- Flow Coefficient (Cv): 30
- Weight: Approximately 0.86 lbs
Key Features
-
Safety: Features a blow-out proof stem for reliable operation under high pressure.
-
Maintenance: Includes an adjustable packing nut to ensure a tight stem seal over the valve's lifespan.
-
Certifications: MSS-SP-110, UL Listed, FM Approved, CSA Certified, and NSF/ANSI 61 & 372 (Lead-Free).
-
Compliance: Meets BAA (Build America, Buy America) requirements
