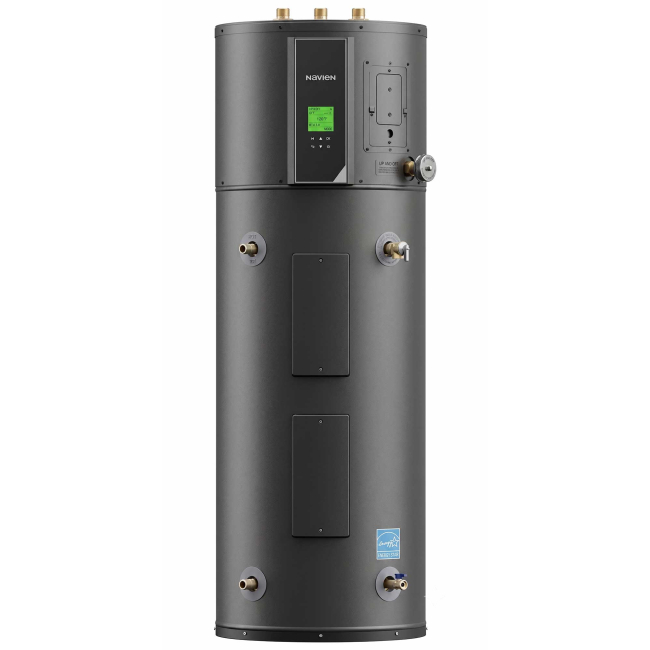

Navien NWP500-80 Premium 80-Gallon Electric Heat Pump Water Heater (4.05 UEF)
Overview
Save up to $2,000 instantly with federal IRA tax credits (Section 25C) plus local utility rebates when you upgrade to a high-efficiency Navien Heat Pump Water Heater!
The Navien NWP500-80 is the flagship 80-gallon model in Navien's heat pump water heater lineup, designed to provide high-capacity hot water performance for large households and high-demand homes. Delivering an industry-leading 4.05 Uniform Energy Factor (UEF) and an 85-gallon First Hour Rating (FHR), it drastically reduces electrical consumption compared to legacy electric water heaters without sacrificing recovery speed or volume.

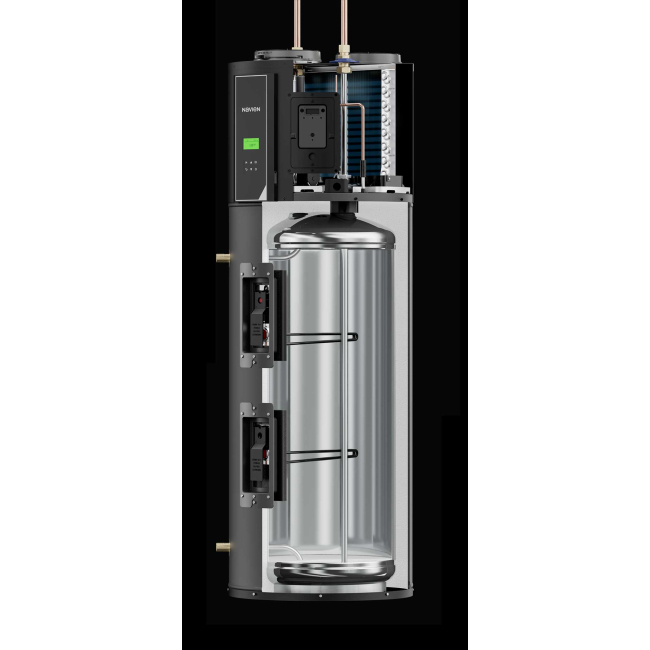

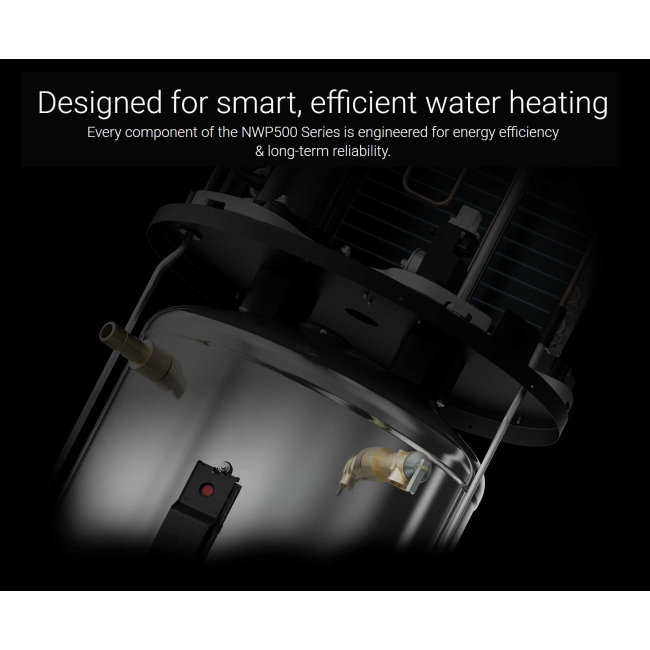

Built to last, the NWP500-80 features a premium corrosion-resistant stainless steel tank and coated aluminum condenser coils, completely eliminating the need for a sacrificial anode rod. With top and side $3/4"\text{ NPT}$ connections, ultra-quiet operation (<45dBA).

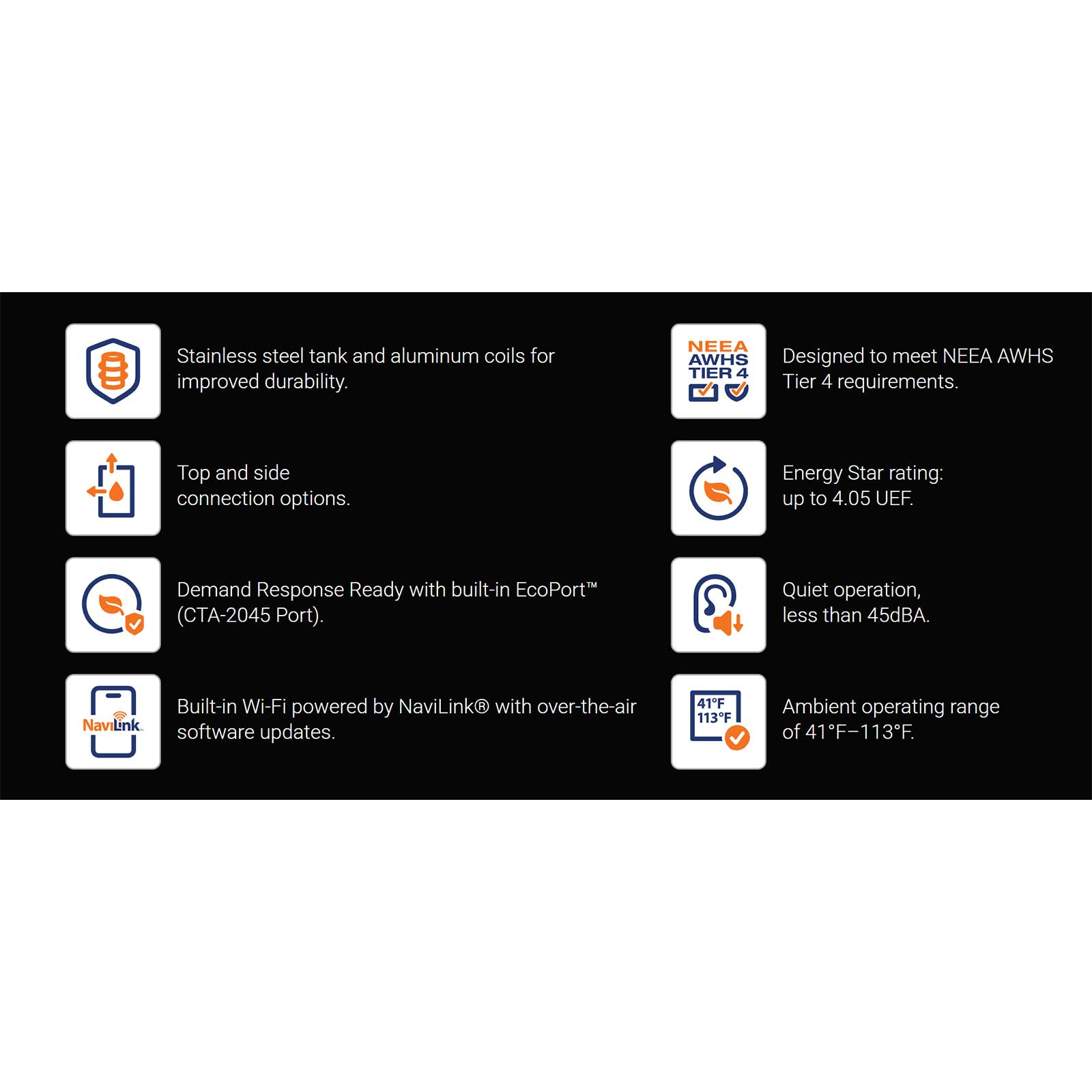

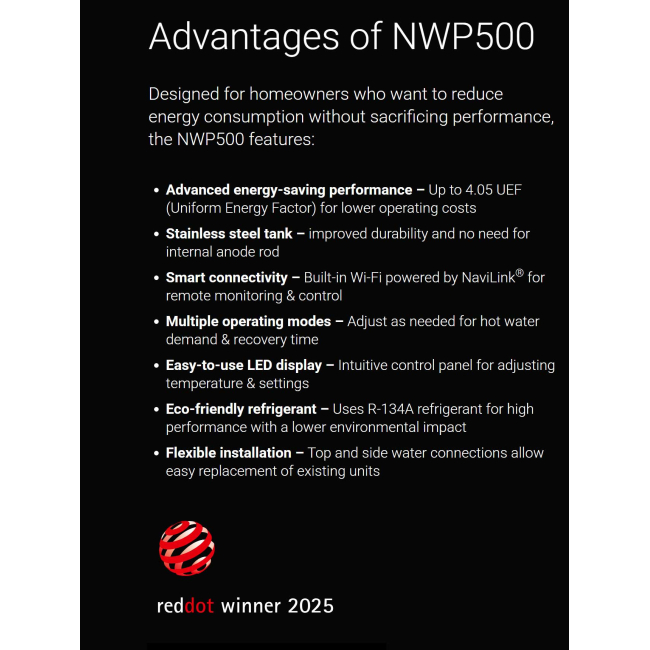

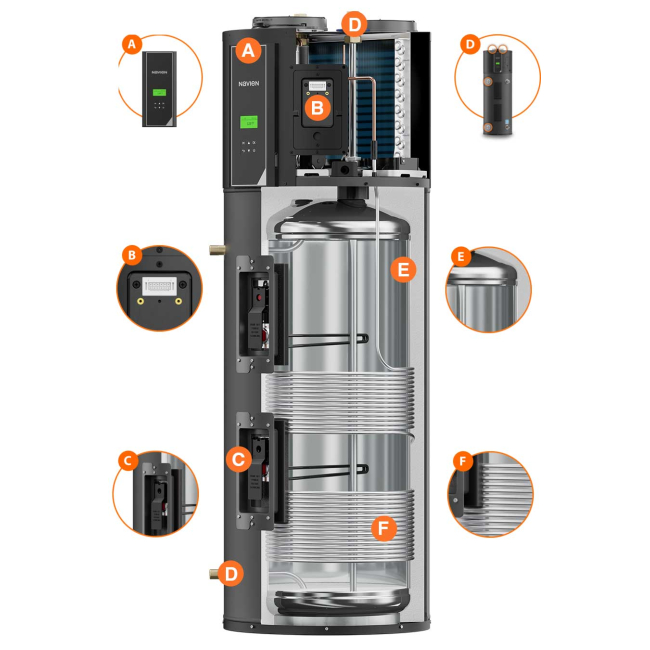

Key Features & Benefits
-
Maximum Efficiency (4.05 UEF): Highest efficiency in the NWP500 series, ENERGY STAR® certified and engineered to meet NEEA AWHS Tier 4 requirements.
-
Long-Life Stainless Steel Tank: Highly resistant to corrosion and mineral buildup; eliminates the hassle of anode rod maintenance and replacements.
-
High First Hour Delivery: Generates an impressive 85 gallons of hot water in the first hour to handle simultaneous showers and heavy appliance use.
-
Versatile Water Connections: Features top and side 3/4 NPT inlet/outlet ports to make installation seamless in both replacement and new construction layouts.
-
Smart NaviLink® Integration: Integrated Wi-Fi allows remote management, monitoring, scheduling, and diagnostic alerts from anywhere.
-
Grid-Interactive EcoPort™: Built-in CTA-2045 port enables connection to utility demand-response programs for additional energy savings.
-

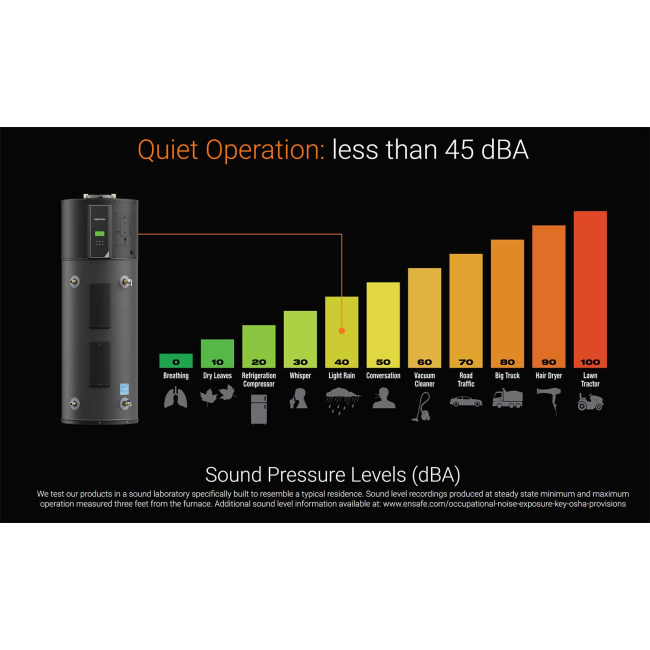

Ultra-Quiet Performance: Operates at less than 45 dBA, ideal for indoor, garage, or utility room placement near living spaces.
-

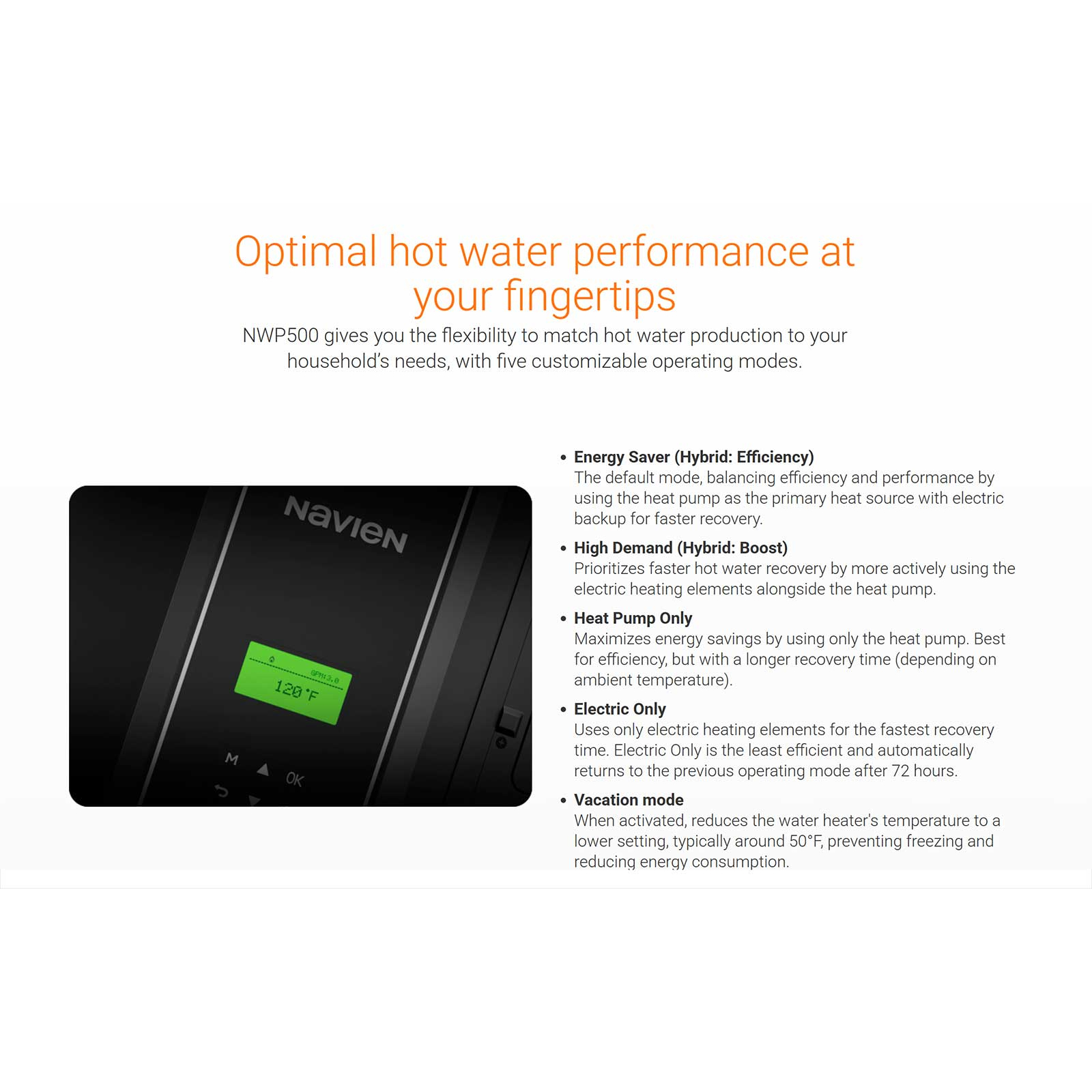

Multiple Operating Modes: Heat Pump, Hybrid/ECO, High Demand, Electric, and Vacation modes adapt to daily family routines or extended travel.
Technical Specifications
General & Performance
| Feature | Value |
| Model Number | NWP500-80 |
| Nominal Tank Capacity | 80 Gallons (302.83L) |
| Rated Storage Volume | 76.1 Gallons (288.07L) |
| Uniform Energy Factor (UEF) | 4.05 |
| First Hour Rating (FHR) | 80 Gallons (321.76L) |
| Noise Level | < 45dBA |
| AHRI Certified Number | 217191099 |
Dimensions & Weight
| Parameter | Value |
| Dimensions (W x H) | 25.0" W x 71.6"H |
| Net Weight | 220 lbs(99.8kg) |
| Shipping Weight | 282 lbs (127.9 kg) |
Electrical & Connections
| Parameter | Value |
| Power Supply | 208-240V AC, 60 Hz Single-Phase |
| Circuit Breaker Amps | 30 Amps |
| Upper / Lower Heating Elements | 5,000W(at 240V) / 3,755W (at 208V) |
| Water / Drain Connections | 3/4" NPT(Hot Outlet, Cold Inlet, Drain, T&P) |
| Air Intake / Exhaust Duct Size | 8" |
| Refrigerant Type | R-134a (28.2 oz / 800g) |
Warranty Information (Residential Single-Family)
-
Tank Warranty: 10 Years
-
Parts Warranty: 10 Years
-
Labor Warranty: 1 Year
This item is available for warehouse pickup only at 30120 Ahern Ave, Union City. We do not offer shipping or delivery for this product.
We have no FAQs to display for this product now.

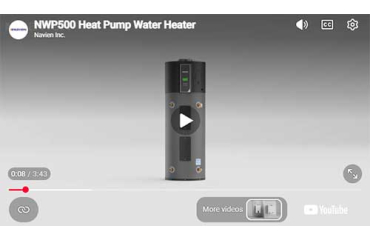

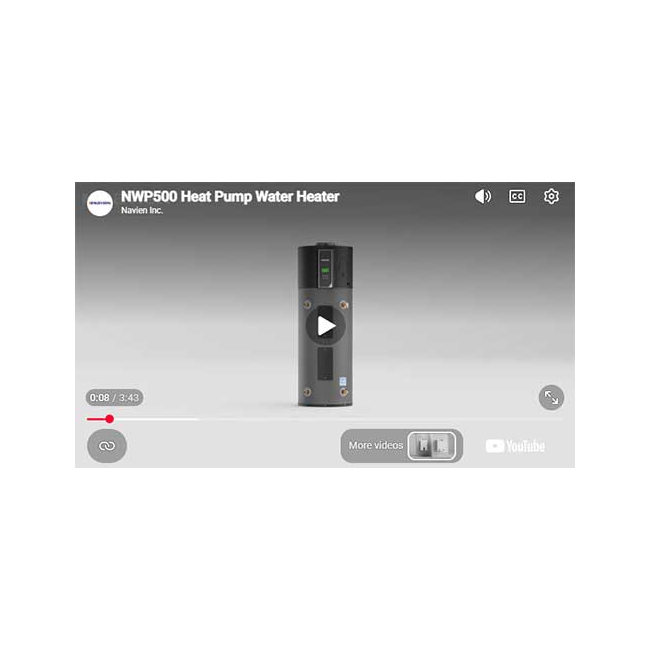

Navien NWP500 Heat Pump Water Heater
